Underground water station:  Novi Sad (RŠ-1/1)  18NP0091/1

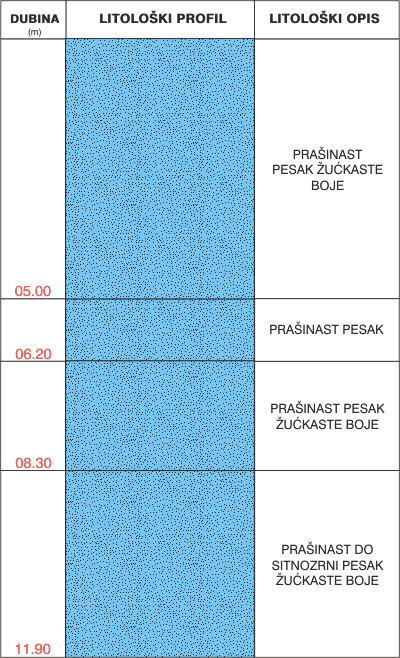

Litological profile:

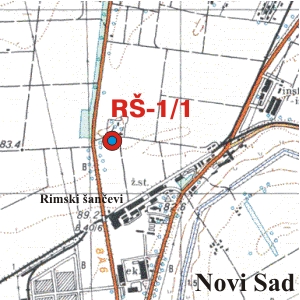

Location:
BASIC INFORMATION ABOUT THE STATION
 AREA: Bačka
 NAME: Novi Sad (RŠ-1/1)
 STATION ID: 18NP0091/1
 STATUS: Active
 STATION ESTABLISTMENT: 01.09.1989.
 PROMOTER: RHMZ-Srbije
 LOCATION: in battery
 RIVER BASIN: Dunav-Mali knl.
 DISTANCE FROM RIVER (km): 4.45
 GEOLOGICAL STRUCTURE: Aluvijalni kvartarni sedimenti
STATION COORDINATE
 GEOGRAPHIC (X): 45° 19’ 19”
 GEOGRAPHIC (Y): 19° 50’ 03”
 GEODETIC (X) (m): 5020359
 GEODETIC (Y) (m): 7408612
 THE NAME OF TOPOGRAF
 MAP (1:25.000):
N.Sad-sev
 THE NUMBER OF TOPOGRAF
 MAP (1:25.000):
378-2-1
TEHNICAL INFORMATION ABOUT THE STATION
 LEVEL "0" (altitude)
 (Adriatic Sea):
85.54
 GROUND LEVEL (altitude)
 (Adriatic Sea):
85.62
 THE HEIGHT ABOVE THE
 GROUND (m):
-0.08
 DIAMETER (mm): 51/46
 CONSTRUCTION LENGHT (m): 11.82
 DEPTH (m): 11.9
STATION WORK PROGRAM IN THE YEAR 2008
 STATION RANK: I
 UNDERGROUND WATER LEVEL
 (the number of monthly measurements):
6
 UNDERGROUND WATER TEMPERATURE
 (the number of monthly measurements):
6
 UNDERGROUND WATER QUALITY
 (the number of annual sampling):
1
CHARACTERISTIC UNDERGROUND WATER LEVEL FOR THE PERIOD: BEGINNING OF THE MEASUREMENT - THE YEAR 2008
 Note: relative values measured from the pipe top (level "0") to the underground water level are presented.
 BEGINNING OF THE MEASUREMENT: 01.09.1989.
 MAKSIMUM LEVEL (cm): 780
 AVERAGE LEVEL (cm): 891
 MINIMUM LEVEL (cm): 988
 BREAK IN MEASURING: Yes
 CHANGE "0" LEVEL: No
UNDERGROUND WATER QUALITY IN THE YEAR 2008
 SAMPLING DATE: 11.11.2008.
 UNDERGROUND WATER LEVEL (cm): 872
 UNDERGROUND WATER
 TEMPERATURE (°C):
 AIR TEMPERATURE (°C):
 VALUE pH: 7.6
 VALUE Eh (µs/cm): 1030
FORMULA OF THE WATER CHEMICAL COMPOSITION
(Kurlov)
 Note: CO2 (g/l); M (g/l); T (°C);
Anions and cations (% ekv.).
