Underground water station: Šabac-Agencija JRB 7NP49
| BASIC INFORMATION ABOUT THE STATION | |
|---|---|
| AREA: | Mačva |
| NAME: | Šabac-Agencija JRB |
| STATION ID: | 7NP49 |
| STATUS: | Active |
| STATION ESTABLISTMENT: | 01.06.1987. |
| PROMOTER: | RHMZ-Srbije |
| LOCATION: | single |
| RIVER BASIN: | Sava |
| DISTANCE FROM RIVER (km): | 0.04 |

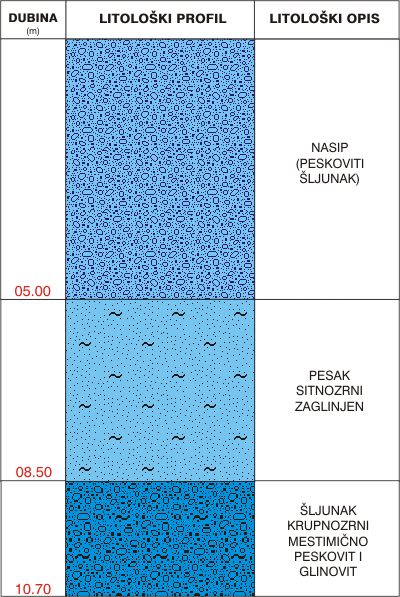

| GEOLOGICAL STRUCTURE: | Aluvijalni kvartarni sedimenti Save |
| STATION COORDINATE | |
| GEOGRAPHIC (X): | 44° 46’ 05” |
| GEOGRAPHIC (Y): | 19° 42’ 19” |
| GEODETIC (X) (m): | 4959000 |
| GEODETIC (Y) (m): | 7397525 |
| THE NAME OF TOPOGRAF MAP (1:25.000): |
Šabac-sev |
| THE NUMBER OF TOPOGRAF MAP (1:25.000): |
077-1-4 |
| TEHNICAL INFORMATION ABOUT THE STATION | |
| LEVEL "0" (altitude) (Adriatic Sea): |
79.99 |
| GROUND LEVEL (altitude) (Adriatic Sea): |
79.21 |
| THE HEIGHT ABOVE THE GROUND (m): |
0.78 |
| DIAMETER (mm): | 76/69 |
| CONSTRUCTION LENGHT (m): | 10.78 |
| DEPTH (m): | 10 |
| STATION WORK PROGRAM | |
|---|---|
| STATION RANK: | II |
| UNDERGROUND WATER LEVEL (the number of monthly measurements): |
6 |
| UNDERGROUND WATER TEMPERATURE (the number of monthly measurements): |
6 |
| CHARACTERISTIC UNDERGROUND WATER LEVEL FOR THE PERIOD: BEGINNING OF THE MEASUREMENT - LAST YEAR | |||||
|---|---|---|---|---|---|
| Note: relative values measured from the pipe top (level "0") to the underground water level are presented. | |||||
| BEGINNING OF THE MEASUREMENT: | 01.06.1987. | ||||
| MAKSIMUM LEVEL (cm): | 229 | ||||
| AVERAGE LEVEL (cm): | 594 | ||||
| MINIMUM LEVEL (cm): | 913 | ||||
| BREAK IN MEASURING: | Yes | ||||
| CHANGE "0" LEVEL: | No | ||||
