Underground water station: Ciglana 14NP601
| BASIC INFORMATION ABOUT THE STATION | |
|---|---|
| AREA: | Podunavlje |
| NAME: | Ciglana |
| STATION ID: | 14NP601 |
| STATUS: | Active |
| STATION ESTABLISTMENT: | 01.04.1994. |
| PROMOTER: | JP "Đerdap" |
| LOCATION: | single |
| RIVER BASIN: | Dunav |
| DISTANCE FROM RIVER (km): | 0.24 |

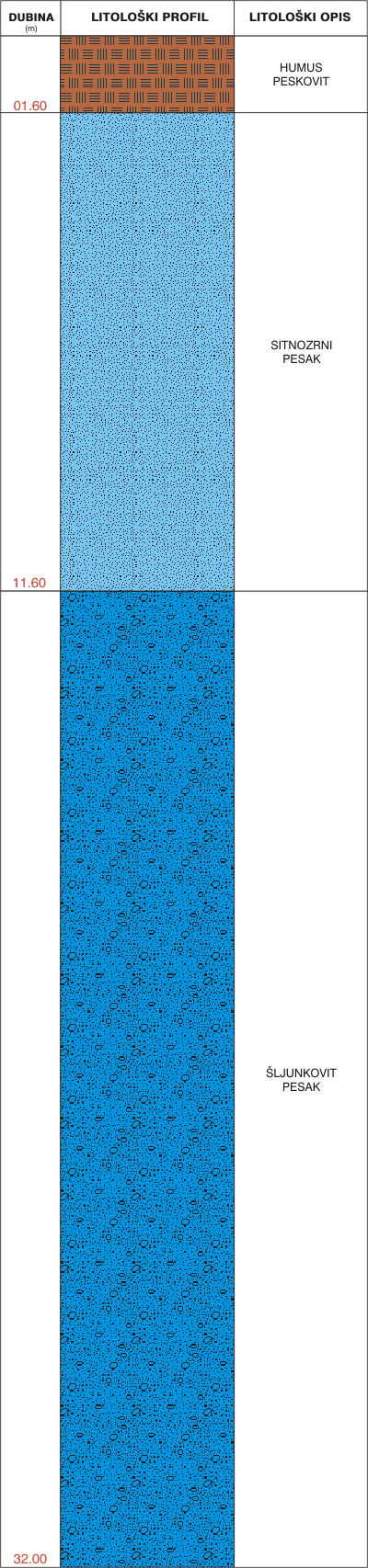

| GEOLOGICAL STRUCTURE: | Aluvijalni kvartarni sedimenti Dunava |
| STATION COORDINATE | |
| GEOGRAPHIC (X): | 44° 44’ 32” |
| GEOGRAPHIC (Y): | 21° 26’ 30” |
| GEODETIC (X) (m): | 4955386 |
| GEODETIC (Y) (m): | 7534969 |

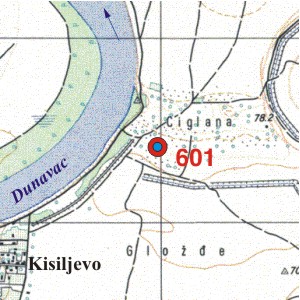

| THE NAME OF TOPOGRAF MAP (1:25.000): |
Topolovnik |
| THE NUMBER OF TOPOGRAF MAP (1:25.000): |
080-4-2 |
| TEHNICAL INFORMATION ABOUT THE STATION | |
| LEVEL "0" (altitude) (Adriatic Sea): |
70.79 |
| GROUND LEVEL (altitude) (Adriatic Sea): |
70.53 |
| THE HEIGHT ABOVE THE GROUND (m): |
0.26 |
| DIAMETER (mm): | 51/46 |
| CONSTRUCTION LENGHT (m): | 32.26 |
| DEPTH (m): | 32 |
| STATION WORK PROGRAM | |
|---|---|
| STATION RANK: | II |
| UNDERGROUND WATER LEVEL (the number of monthly measurements): |
3 |
| UNDERGROUND WATER TEMPERATURE (the number of monthly measurements): |
|
| CHARACTERISTIC UNDERGROUND WATER LEVEL FOR THE PERIOD: BEGINNING OF THE MEASUREMENT - LAST YEAR | |||||
|---|---|---|---|---|---|
| Note: relative values measured from the pipe top (level "0") to the underground water level are presented. | |||||
| BEGINNING OF THE MEASUREMENT: | 01.04.1994. | ||||
| MAKSIMUM LEVEL (cm): | 506 | ||||
| AVERAGE LEVEL (cm): | 669 | ||||
| MINIMUM LEVEL (cm): | 798 | ||||
| BREAK IN MEASURING: | Yes | ||||
| CHANGE "0" LEVEL: | No | ||||
