Underground water station: Ban.Karlovac (BK-1) 19NP0171
| BASIC INFORMATION ABOUT THE STATION | |
|---|---|
| AREA: | Banat |
| NAME: | Ban.Karlovac (BK-1) |
| STATION ID: | 19NP0171 |
| STATUS: | Active |
| STATION ESTABLISTMENT: | 01.09.1989. |
| PROMOTER: | RHMZ-Srbije |
| LOCATION: | in battery |
| RIVER BASIN: | Dunav-kanal |
| DISTANCE FROM RIVER (km): | 1.06 |

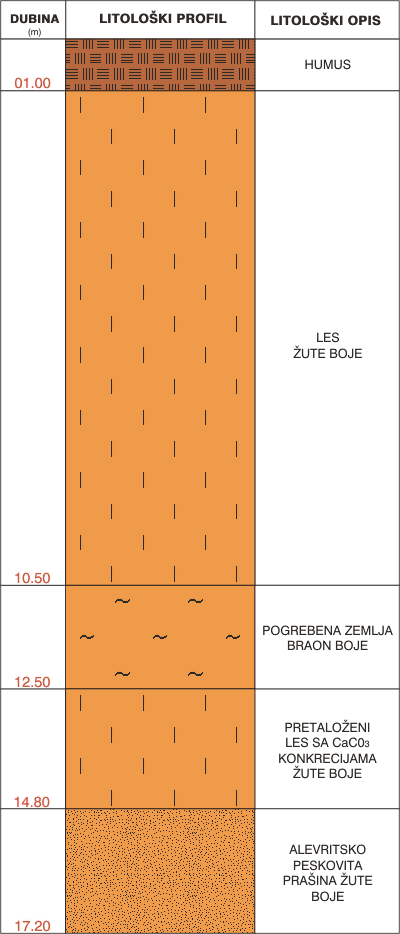

| GEOLOGICAL STRUCTURE: | Aluvijalni kvartarni sedimenti |

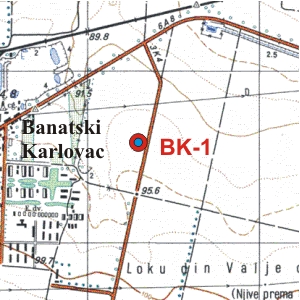

| STATION COORDINATE | |
| GEOGRAPHIC (X): | 45° 03’ 01” |
| GEOGRAPHIC (Y): | 21° 02’ 32” |
| GEODETIC (X) (m): | 4989543 |
| GEODETIC (Y) (m): | 7503330 |
| THE NAME OF TOPOGRAF MAP (1:25.000): |
Nikolinci |
| THE NUMBER OF TOPOGRAF MAP (1:25.000): |
381-3-3 |
| TEHNICAL INFORMATION ABOUT THE STATION | |
| LEVEL "0" (altitude) (Adriatic Sea): |
93.82 |
| GROUND LEVEL (altitude) (Adriatic Sea): |
93.71 |
| THE HEIGHT ABOVE THE GROUND (m): |
0.11 |
| DIAMETER (mm): | 51/46 |
| CONSTRUCTION LENGHT (m): | 17.20 |
| DEPTH (m): | 17.09 |
| STATION WORK PROGRAM | |
|---|---|
| STATION RANK: | I |
| UNDERGROUND WATER LEVEL (the number of monthly measurements): |
6 |
| UNDERGROUND WATER TEMPERATURE (the number of monthly measurements): |
6 |
| CHARACTERISTIC UNDERGROUND WATER LEVEL FOR THE PERIOD: BEGINNING OF THE MEASUREMENT - LAST YEAR | |||||
|---|---|---|---|---|---|
| Note: relative values measured from the pipe top (level "0") to the underground water level are presented. | |||||
| BEGINNING OF THE MEASUREMENT: | 01.09.1989. | ||||
| MAKSIMUM LEVEL (cm): | 286 | ||||
| AVERAGE LEVEL (cm): | 555 | ||||
| MINIMUM LEVEL (cm): | 720 | ||||
| BREAK IN MEASURING: | Yes | ||||
| CHANGE "0" LEVEL: | No | ||||
