Underground water station: Vračev Gaj (NVG-3) 19NP0493
| BASIC INFORMATION ABOUT THE STATION | |
|---|---|
| AREA: | Banat |
| NAME: | Vračev Gaj (NVG-3) |
| STATION ID: | 19NP0493 |
| STATUS: | Active |
| STATION ESTABLISTMENT: | 01.01.1991. |
| PROMOTER: | RHMZ-Srbije |
| LOCATION: | in profile |
| RIVER BASIN: | Nera |
| DISTANCE FROM RIVER (km): | 0.20 |

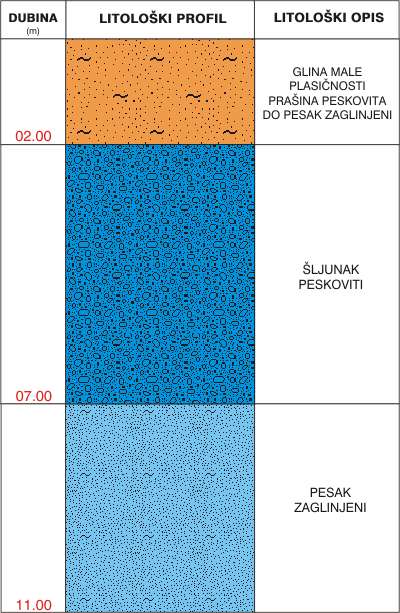

| GEOLOGICAL STRUCTURE: | Aluvijalni kvartarni sedimenti Nere |

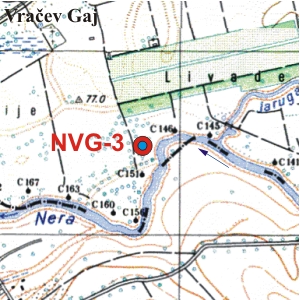

| STATION COORDINATE | |
| GEOGRAPHIC (X): | 44° 52’ 17” |
| GEOGRAPHIC (Y): | 21° 23’ 27” |
| GEODETIC (X) (m): | 4969728 |
| GEODETIC (Y) (m): | 7530875 |
| THE NAME OF TOPOGRAF MAP (1:25.000): |
Zatonje |
| THE NUMBER OF TOPOGRAF MAP (1:25.000): |
080-2-4 |
| TEHNICAL INFORMATION ABOUT THE STATION | |
| LEVEL "0" (altitude) (Adriatic Sea): |
77.24 |
| GROUND LEVEL (altitude) (Adriatic Sea): |
76.30 |
| THE HEIGHT ABOVE THE GROUND (m): |
0.94 |
| DIAMETER (mm): | 51/46 |
| CONSTRUCTION LENGHT (m): | 9.00 |
| DEPTH (m): | 8.06 |
| STATION WORK PROGRAM | |
|---|---|
| STATION RANK: | I |
| UNDERGROUND WATER LEVEL (the number of monthly measurements): |
6 |
| UNDERGROUND WATER TEMPERATURE (the number of monthly measurements): |
|
| CHARACTERISTIC UNDERGROUND WATER LEVEL FOR THE PERIOD: BEGINNING OF THE MEASUREMENT - LAST YEAR | |||||
|---|---|---|---|---|---|
| Note: relative values measured from the pipe top (level "0") to the underground water level are presented. | |||||
| BEGINNING OF THE MEASUREMENT: | 01.01.1991. | ||||
| MAKSIMUM LEVEL (cm): | 45 | ||||
| AVERAGE LEVEL (cm): | 175 | ||||
| MINIMUM LEVEL (cm): | 252 | ||||
| BREAK IN MEASURING: | Yes | ||||
| CHANGE "0" LEVEL: | No | ||||
