Underground water station: Banatska Palanka (BP-1) 19NP373/A
| BASIC INFORMATION ABOUT THE STATION | |
|---|---|
| AREA: | Banat |
| NAME: | Banatska Palanka (BP-1) |
| STATION ID: | 19NP373/A |
| STATUS: | Active |
| STATION ESTABLISTMENT: | 01.01.1971. |
| PROMOTER: | RHMZ-Srbije |
| LOCATION: | single |
| RIVER BASIN: | Dunav-DTD-Nera-Karaš |
| DISTANCE FROM RIVER (km): | 1.34 |

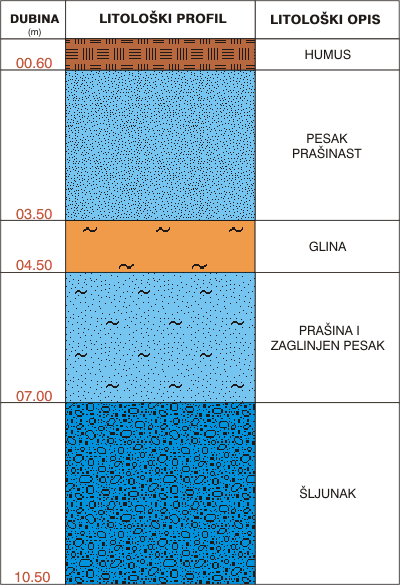

| GEOLOGICAL STRUCTURE: | Aluvijalni kvartarni sedimenti |
| STATION COORDINATE | |
| GEOGRAPHIC (X): | 44° 50’ 45” |
| GEOGRAPHIC (Y): | 21° 20’ 14” |
| GEODETIC (X) (m): | 4966875 |
| GEODETIC (Y) (m): | 7526650 |
| THE NAME OF TOPOGRAF MAP (1:25.000): |
Kličevac |
| THE NUMBER OF TOPOGRAF MAP (1:25.000): |
080-2-3 |
| TEHNICAL INFORMATION ABOUT THE STATION | |
| LEVEL "0" (altitude) (Adriatic Sea): |
93.43 |
| GROUND LEVEL (altitude) (Adriatic Sea): |
92.99 |
| THE HEIGHT ABOVE THE GROUND (m): |
0.44 |
| DIAMETER (mm): | 51/46 |
| CONSTRUCTION LENGHT (m): | 10.94 |
| DEPTH (m): | 10.5 |
| STATION WORK PROGRAM | |
|---|---|
| STATION RANK: | II |
| UNDERGROUND WATER LEVEL (the number of monthly measurements): |
3 |
| UNDERGROUND WATER TEMPERATURE (the number of monthly measurements): |
|
| CHARACTERISTIC UNDERGROUND WATER LEVEL FOR THE PERIOD: BEGINNING OF THE MEASUREMENT - LAST YEAR | |||||
|---|---|---|---|---|---|
| Note: relative values measured from the pipe top (level "0") to the underground water level are presented. | |||||
| BEGINNING OF THE MEASUREMENT: | 01.01.1971. | ||||
| MAKSIMUM LEVEL (cm): | 332 | ||||
| AVERAGE LEVEL (cm): | 443 | ||||
| MINIMUM LEVEL (cm): | 511 | ||||
| BREAK IN MEASURING: | Yes | ||||
| CHANGE "0" LEVEL: | No | ||||
