Underground water station: Svilajnac 1NP977
| BASIC INFORMATION ABOUT THE STATION | |
|---|---|
| AREA: | Velika Morava |
| NAME: | Svilajnac |
| STATION ID: | 1NP977 |
| STATUS: | Active |
| STATION ESTABLISTMENT: | 01.01.1979. |
| PROMOTER: | RHMZ-Srbije |
| LOCATION: | single |
| RIVER BASIN: | Velika Morava-Resava |
| DISTANCE FROM RIVER (km): | 1.28 |

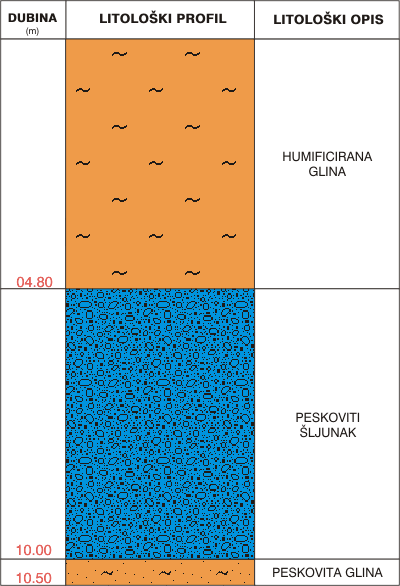

| GEOLOGICAL STRUCTURE: | Aluvijalni kvartarni sedimenti Velike Morave |

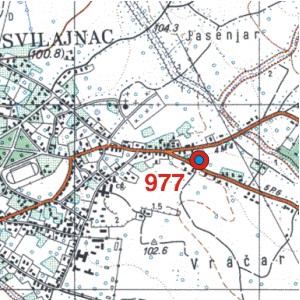

| STATION COORDINATE | |
| GEOGRAPHIC (X): | 44° 14’ 00” |
| GEOGRAPHIC (Y): | 21° 13’ 06” |
| GEODETIC (X) (m): | 4898787 |
| GEODETIC (Y) (m): | 7517439 |
| THE NAME OF TOPOGRAF MAP (1:25.000): |
Svilajnac |
| THE NUMBER OF TOPOGRAF MAP (1:25.000): |
099-3-2 |
| TEHNICAL INFORMATION ABOUT THE STATION | |
| LEVEL "0" (altitude) (Adriatic Sea): |
106.92 |
| GROUND LEVEL (altitude) (Adriatic Sea): |
106.32 |
| THE HEIGHT ABOVE THE GROUND (m): |
0.60 |
| DIAMETER (mm): | 76/67 |
| CONSTRUCTION LENGHT (m): | 11.10 |
| DEPTH (m): | 10.5 |
| STATION WORK PROGRAM | |
|---|---|
| STATION RANK: | II |
| UNDERGROUND WATER LEVEL (the number of monthly measurements): |
3 |
| UNDERGROUND WATER TEMPERATURE (the number of monthly measurements): |
|
| CHARACTERISTIC UNDERGROUND WATER LEVEL FOR THE PERIOD: BEGINNING OF THE MEASUREMENT - LAST YEAR | |||||
|---|---|---|---|---|---|
| Note: relative values measured from the pipe top (level "0") to the underground water level are presented. | |||||
| BEGINNING OF THE MEASUREMENT: | 01.01.1979. | ||||
| MAKSIMUM LEVEL (cm): | 452 | ||||
| AVERAGE LEVEL (cm): | 725 | ||||
| MINIMUM LEVEL (cm): | 879 | ||||
| BREAK IN MEASURING: | Yes | ||||
| CHANGE "0" LEVEL: | No | ||||
